Noise Control

Noise control in the workplace

When hazardous noise is present in the workplace, consider whether noise controls can be used to decrease employee exposures.

Can we control the noise?

  • 3M Hierarchy of Controls

    The concept of a Hierarchy of Controls is well established in occupational health and safety. Simply put, it is more effective to eliminate or decrease the severity of the hazard than to change the way people work or require workers to wear protective equipment.

    For example, an employer can adopt a Buy Quiet approach, specifying less noisy equipment and processes during the design phase. However, when eliminating the noise is not feasible, there are approaches to lowering the risk of noise-induced hearing loss, either through engineering a solution or applying an administrative policy to limit noise exposure.

    Engineering controls involve modifying the equipment, process, or environment in some way so that less sound energy is created or is transmitted to the workers. Often, the most effective approach is to identify and treat the source of the noise based on the results of a noise control survey.

    Administrative controls are policies designed to lower the noise exposure by limiting the time workers spend in high noise areas. These policies are often necessary when engineering controls are not feasible or cost effective.

Key Takeaways

  • Controlling noise:


    • Is considered the most effective method to reduce the noise hazard.
    • Can be done by specifying quiet equipment during process design, using engineering controls or implementing administrative controls.
    • May allow a company to reduce the number of employees in a hearing conservation program.
  • • Absorption

    • A-weighting

    • Buy Quiet

    • Damping

  • • Isolation

    • Noise Survey

    • Reflection

    • Time-weighted average

The Benefits of Controlling Noise

  • Benefits of Controlling Noise

    Employers who control noise through various methods can benefit in numerous ways:


    1. Reduce the risk of noise-induced hearing loss (NIHL) and associated health effects among employees.
    2. Eliminate or reduce the cost and time spent on implementing a Hearing Conservation Program (HCP) when employee noise exposure is reduced below your national action level as a result of noise control efforts.
    3. Decrease overall reliance on hearing protection devices (HPDs).
    4. Enable more options for suitable hearing protection devices.
    5. Help to improve face-to-face and radio communication, with less background noise to interfere with speech.
    6. Easily comply with national regulations on occupational noise exposure.
    7. Show commitment to employees that their employer is serious about reducing noise hazards.

webLoaded = "false"

Getting Started With Noise Control

Although you may choose to consult with a noise control engineer to assess your situation and design solutions, it is extremely beneficial to involve the employees who work in noisy areas as part of a team working to find ways to lower the noise. A consultant can bring tremendous technical knowledge but the people who spend each day immersed in the noise can provide some of the most practical and straightforward solutions because they know the processes and equipment so well.

  • It might seem obvious, but the process of controlling hazardous noise in the workplace can't really begin until the employer has completed a noise hazard assessment and analysed the results. By monitoring noise in different areas of the facility and by conducting noise surveys on different processes, tasks and tools, employers can collect the data necessary to identify groups of workers and areas where noise controls are most needed, and prioritise where and how to spend valuable noise control resource to achieve the best results. A more detailed noise control survey can then be done to identify the noise sources and select the most appropriate noise control solution.

  • Making equipment and processes less noisy during design and fabrication is more effective and economically efficient than implementing noise controls afterward. Buy Quiet is a type of Prevention through Design approach which places a priority on eliminating or controlling the hazard by specifying machinery or tools that create less noise. This is accomplished when a new production processes is being designed or when older equipment or processes are replaced.

  • Prioritizing the potential noise control projects is an important step toward achieving the most economic outcome. While it may seem logical to focus attention on the highest noise source in your facility, it is possible that you can achieve a more significant decrease in employee noise exposures by first controlling noise in the areas closest to where a large percentage of your employees are working. Some noise controls are fairly inexpensive and, when successful, can gain tremendous support from employees and management.

  • It is often necessary to implement a multi-pronged approach involving both engineering and administrative controls


    • Engineering controls may include modifications to the noise source as well as the sound path. A noise control engineer can help you evaluate the effectiveness of different controls for your unique noise situation, including: isolators, enclosures, dampers, absorbers, and barriers.;
    • Administrative controls may be less complicated from a technical point of view but can be disruptive if extensive changes to work schedules and work flow are involved. It is not necessarily difficult to establish time limits for employees working in certain areas or doing specific tasks but enforcement of such limits may create additional complexity in your HCP.
  • Employers are required to control noise as detailed in the European Physical Agents (Noise) Directive 2003/10/EC. Demonstrating whether a particular noise control solution is technically feasible can be fairly straight forward, but the economics involved may be harder to evaluate.

    Some of the questions to consider are:


    • Is the decrease in the sound level that can be achieved with a certain noise control significant enough to justify the cost relative to the cost of a hearing conservation program?
    • What are the up-front costs of installation and the long-term costs of maintaining the control(s)?
    • What effect will the controls have on the processes in your facility and the work flow? How will that impact efficiency?
  • Perform noise measurements once controls are in place and periodically afterward to verify and document the results. Establish a schedule to monitor the effectiveness of noise control materials and mechanisms as they age and, potentially, deteriorate over time due to wear and tear. Whenever changes are made to processes and production, review what the effects may be in terms of existing noise controls.

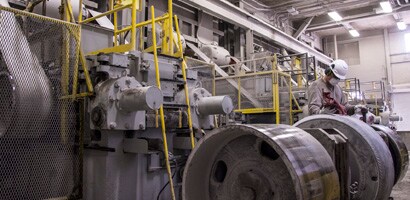

Requirements

  • Noise Control Requirements

    What is Required?

    The exposure limit values and exposure action values are detailed in the European Physical Agents (Noise) Directive 2003/10/EC. Suitable hearing protectors need to be made available to employees on reaching the Lower Exposure Action Value, and must be strictly enforced on reaching the Upper Exposure Action Value. The use of hearing protectors in terms of achieving the Limit Value is clearly explained.

  • Noise Control Engineer

    Using Hearing Protection as an alternative to Engineering Controls

    If noise cannot be controlled at source to the permitted exposure limits as outlined in the European Physical Agents (Noise) Directive 2003/10/EC, employers must provide suitable hearing protection devices (HPDs) and ensure they are used in designated areas. The European Guidance Document EN 458:2016 provides comprehensive information on the process of correct selection, use and maintenance of hearing protectors. Fit testing is included in the European guidance document as a way of improving field performance of hearing protectors and 3M strongly recommends fit testing as a valuable training and motivational programme.

Basics of Noise Control

Basics of Noise Control



In the most basic sense, limiting the noise exposure of employees can be accomplished by applying controls to the noise Source, the noise Path or the Receiver.



  • Source
    The noise source is a vibrating object—a machine or tool creating vibration during operation that radiates into the work area as noise.

    Path
    Noise travels through the air, of course, but also through solid materials such as floors, walls and windows.

    Receiver
    In hearing conservation, the receiver is the worker.

  • Examples of Administrative Noise Controls

    Administrative controls are policies designed to lower the noise exposure by limiting the time workers spend in high noise areas. These policies are often necessary when engineering controls are not feasible or cost effective.

    For example, an employer can adopt a Buy Quiet approach, specifying less noisy equipment and processes during the design phase. However, when eliminating the noise is not feasible, there are approaches to lowering the risk of noise-induced hearing loss, either through engineering a solution or applying an administrative policy to limit noise exposure.

    Source


    • Operate noisy equipment and processes when fewer employees are present—for example at night
    • Turn off noise sources in between tasks or when employees are present

    Path


    • Restrict access to noisy areas

    Receiver


    • Rotate employees in and out of noise during the day
    • Set time limits for certain tasks or use of noisy tools
  • Examples of Engineering Noise Controls

    Engineering controls involve modifying the equipment, process, or environment in some way so that less sound energy is created or is transmitted to the workers. Often, the most effective approach is to identify and treat the source of the noise based on the results of a noise control survey.

    Source


    • Maintain tools and equipment routinely (such as lubricating gears, replacing gaskets, etc)
    • Reduce vibration where possible
    • Modify the process or method of production such as changing:
      • Speed
      • Pressure
      • Mechanical controls
      • Direction of air flow

    Path


    • Isolate the noise source using springs or pads to prevent noise from traveling through floors or walls
    • Enclose the noise source
    • Place a barrier between the noise source and the employee
    • Isolate the employee from the source in a room or booth
    • Install sound absorbing materials to minimize direct sound transmission or reflection

    Receiver


    • Use video monitors or remote controls to allow employees to operate equipment at a location farther from noise sources
    • Retrain employees to use tools or complete tasks in ways that create less noise
    • Require employees to wear hearing protection

Types of Engineering Controls

Noise control images used courtesy Associates in Acoustics, Inc.

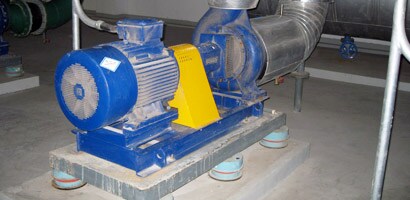

  • Sound Isolation

    Isolation

    • Springs, foam or other damping materials are used to reduce the transmission of sound from noise sources to floors, walls or connected equipment.
    • For example, springs on each support of a floor-mounted motor to lessen the sound energy that is passed into the floor and the rest of the building.

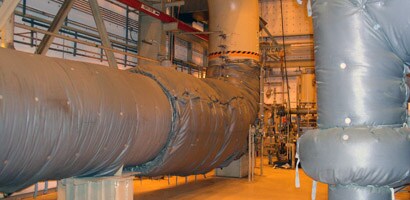

  • Sound Damping

    Damping

    • Placing materials such as foam, resin or tape on an object or modifying it so that it vibrates less.
    • For example, coating the outside of a metal bin with resin to reduce the vibration made when parts are dropped into the bin

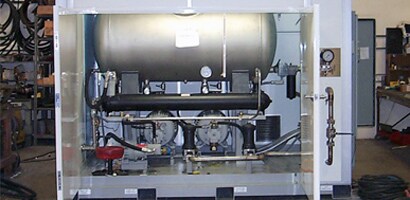

  • Sound Reflection

    Reflection

    • Barriers or partitions are placed in the sound path to deflect sound away from employees
    • For example, placing a wall or enclosure around a compressor so employees can work nearby with less direct noise exposure

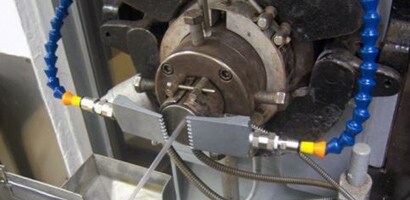

  • Sound Substitution

    Substitution

    • Replacing or modifying components of a noisy system to make less noise
    • For example, switching to a quieter air nozzle or replacing steel wheels on a cart with low-noise rubber wheels

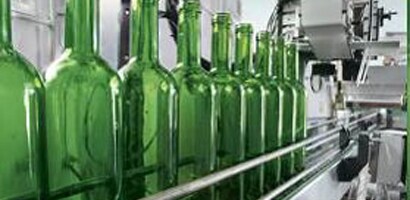

  • Sound Modification

    Modification

    • Changing a process to make it less noisy
    • For example, decreasing the distance that parts much drop into a bin so less noise is created

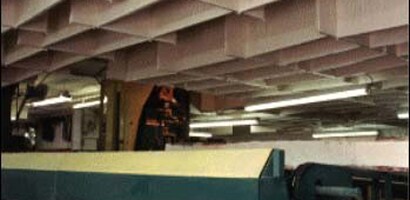

  • Sound Absorption

    Absorption

    • Sound-absorbing materials placed in an area to reduce the reflection and buildup of sound
    • For example, acoustical tiles place on a hard surface to lower sound reflection in a room

Beyond the Basics

The benefits of effective noise control (described above) can be expanded by implementing a Buy Quiet policy.

  • Effective Noise Control

    Why Buy Quiet? Adapted from U.S. NIOSH*
    Noise-induced hearing loss can be prevented if daily noise exposure levels are reduced to the exposure limits daily outlined in the Physical Agents (Noise) Directive 2003/10/EC. Buy Quiet can help employers to stay below permitted exposure levels. Specifying less noisy tools and processes during the design phase can help employers to avoid costly noise controls once long-term purchases and commitments have been made.

    The Benefits of Buy Quiet


    • Reduce the risk of hearing loss.
    • Reduce the long-term costs of audiometric testing, personal protective equipment, and workers compensation. This savings is applicable across a wide variety of machinery and equipment.
    • Help companies to comply with European and national regulations.
    • Reduce the impact of noise on the community.

    Estimating the cost savings
    Tools you can use to evaluate the cost effectiveness of a Buy Quiet approach are available by clicking here.

    Examples of Successful Control Strategies
    The Safe-In-Sound awards program recognizes employers and other organizations who have achieved success implementing hearing loss prevention programs and applied innovative approaches to controlling employee noise exposure. Learn more online at www.safeinsound.us.


Have You Considered?

    • Having a “noise control contest” by engaging your maintenance workers to come up with solutions to noise problems identified by your workforce?
    • Controlling the leaks in systems that use compressed air to save on energy costs as well as reducing the noise exposure?
    • How much does your hearing conservation program cost annually per worker? How much can you save by reducing the noise exposure below the action level?
    • Starting a “buy quiet” policy so that no additional noise sources are introduced into your production areas?
    • Setting a goal to do one or more noise control projects per year?
    • Measuring the noise after a noise control is implemented to track the success of the project?
    • Creating a log of all the noise control projects?
    • Updating employee noise exposure records to reflect the new results and when they took effect?
    • Making a strategic plan to lower noise exposures over time, tackling the highest priorities first?
  • IMPORTANT NOTE: This information is based on selected current national requirements. Other country or local requirements may be different. Always consult User Instructions and follow national regulations. This website contains an overview of general information and should not be relied upon to make specific decisions. Reading this information does not certify proficiency in safety and health. Information is current as of the date of publication, and requirements can change in the future. This information should not be relied upon in isolation, as the content is often accompanied by additional and/or clarifying information. All applicable national laws and regulations must be followed.

    Contact your local 3M office for further information.
