Gasket Attachment Assemblies​

3M Gasket Attachment products keep fluids in place.

Ask a 3M Expert
webLoaded = "false"

Solutions for pre-formed gasket attachment.

Gaskets are substrates, typically foam, rubber or paper, that act as an interface or seal between two surfaces. They are found throughout industry, but are especially common in electronics, transportation, fluid handling and appliances. Their assembly requires resistance to a number of fluids, high adhesion to difficult-to-bond surfaces, and fast and easy application. ​​

  • Gasket Attachment Assemblies Typically Require


    • Easy and fast application of tape or adhesive​
    • Strong environmental and chemical resistance​
    • High adhesion to foams, rubbers and other difficult-to-bond substrates

webLoaded = "false"

Common Joint Types and Stresses in Gasket Attachment

  • Compression Stress

    Compression Stress

    Because gaskets are often held in place with pressure and friction (O-rings, for example) a true “bond” may not be required. In applications such as these, adhesive bonded gaskets are most commonly placed in compression stress.

  • Image of Peel Stress

    Peel Stress

    The primary function of the adhesive or tape is to seal and permanently bond the gasket should the two different parts be separated. For gaskets with exposed edges or applications requiring frequent separation (e.g. refrigerator doors), peel stresses become prominent. Gasket material is often very flexible, and adhesives and tapes with high peel strengths are required.​


webLoaded = "false" Loadclientside=No

PRO TIP

Gaskets bonded into a groove provide ultimate strength because the groove serves to prevent peel forces from delaminating the adhesive or tape


webLoaded = "false"

Product Categories and Adhesive Consideration for Gasket Attachment

3M tapes, adhesives, sealers and fasteners offer a range of products for panel-to-frame and stiffener-to-panel applications. Permanently bond panels to rigid frames. Maintain elasticity for dynamic loads or to allow for expansion when temperatures change.

Consider the following factors when choosing a product


  • Number of steps to apply adhesive or tape
  • Ease of application
  • Rate of strength build
  • Flexibility and adhesive joint expansion
  • Holding power
  • Repair and removal after cure

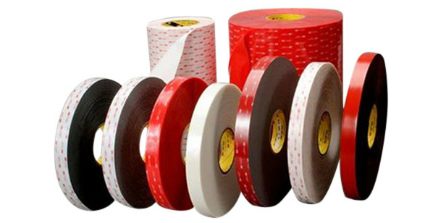

  • 3M™ VHB™ Tapes

    High-strength bonding tapes that can be die-cut into a variety of shapes to replace rubber or foam gaskets, providing an instant, simple solution. Their closed-cell construction provides a watertight barrier between flat parts.

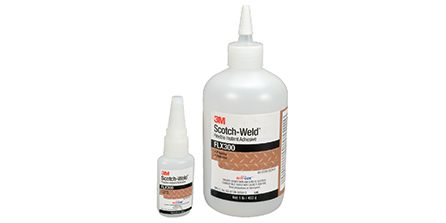

  • 3M™ Scotch-Weld™ Instant Adhesives

    One part solvent-free cyanoacrylate (CA) adhesive that reaches handling strength in 5–30 seconds. Best for small very tight bondlines (<10 cm2 ). Commonly used on rubbers and plastics.

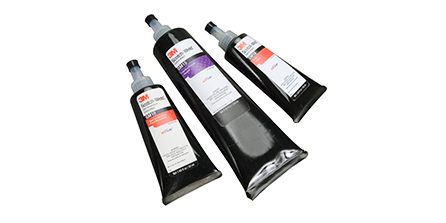

  • 3M™ Scotch-Weld™ Gasket Makers

    One-part anaerobic adhesives can be applied as a curing liquid gasket between complex metal shapes, replacing pre-formed gaskets.

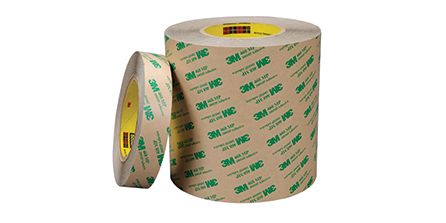

  • 3M™ Adhesive Transfer Tapes

    Can be pre-applied to gasketing material which is then die-cut to provide parts. These products provide instant adhesion to flat, untextured substrates.

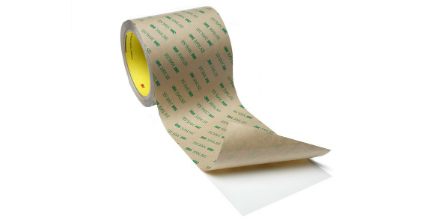

  • 3M™ Double Coated Tapes

    Can be pre-applied to gasketing material which is then die-cut to provide parts. These products provide instant adhesion.

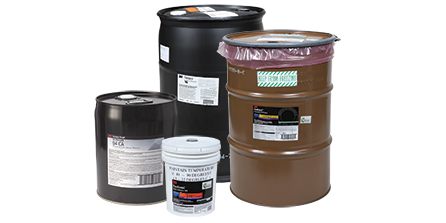

  • 3M™ Spray Adhesives

    Solvent and water based adhesives can be sprayed, brushed or roll applied. Very fast, easy and economical coverage of multiple substrates, irregular shapes and mild textures.


Performance Factors for Gasket Attachment

All 3M technologies shown below are commonly used in gasket attachment applications. Use the list below as a relative comparison of product performance.

  • + = Good ++ = Better +++ = Best
