An engineer will create a rendering of an assembly with the finite element software and define each material of interest. In order to predict performance with simulations, the model defines the parts’ geometries, their relation to one another and their material properties. Material properties are defined using a material model which describes the behaviour such as the stress-strain response of the material. Material models are one of the main inputs of an FEA and directly influence the accuracy of the user’s final FEA results.
PSAs are soft, flexible, non-reactive adhesives that form a bond when pressure is applied. Their material behaviour is viscoelastic, which means, that besides a typical strain and temperature dependency, also their strength is proportional to the rate of deformation. Due to viscous effects like stress relaxation, conventional mechanical properties such as Young’s modulus and Poisson’s ratio, even when obtained at relevant strain rates and temperatures, do not represent the physics of viscoelasticity, and therefore, the behaviour of PSAs well.

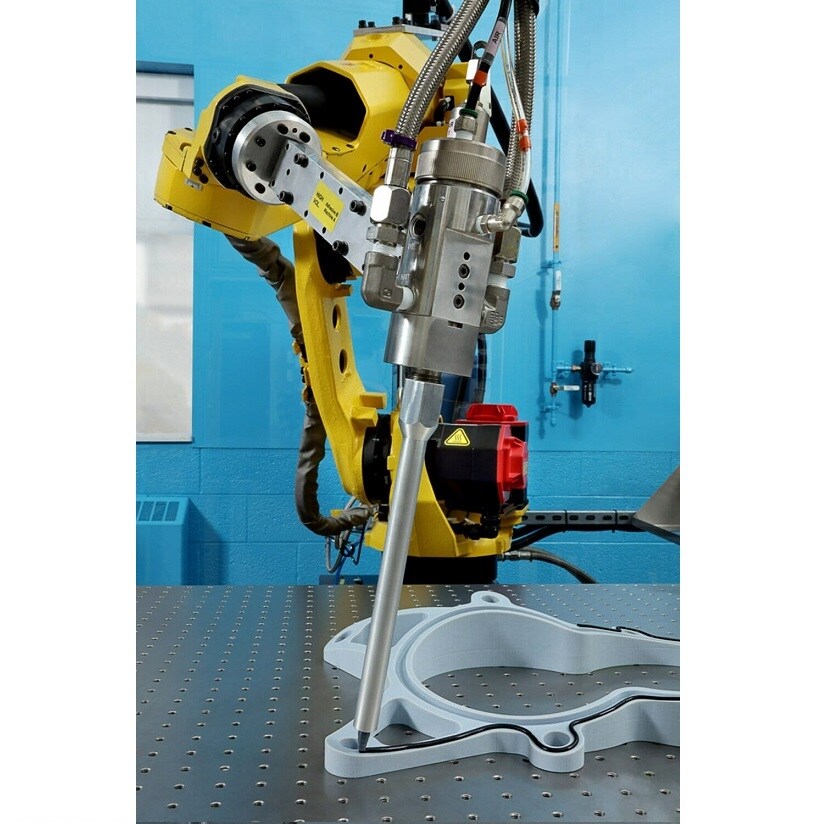

Structural adhesives are reactive systems capable of bearing high loads (>7 MPa overlap shear strength). Structural adhesive properties range from flexible to very stiff. Some ductile adhesives can undergo large plastic deformations before failure. The mechanical response of structural adhesives must be characterized in both the elastic and plastic regimes and should include strain rate and temperature sensitivities.
Adhesives exhibit different types of mechanical behaviours when exposed to different loading conditions than standard engineering materials like metals. Capturing those effects with a material model requires advanced testing and calibration methods. 3M is uniquely positioned to characterize adhesive materials and provide advanced material models in a format compatible with a variety of finite element modelling software.
Pressure Sensitive Adhesives and Structural Adhesives have different material properties which make them suitable for use in different applications. It is important to understand how those properties will translate to the application. FEA modelling is a tool that helps determine the right adhesive system for the application requirements.
The behaviour of materials can be included into the FEA by using so-called Material Data Cards (MDCs). The calibration of certain models that are used to characterize the behaviour of adhesives requires up to five different types of experiments (not counting the repetitions) per strain rate and temperature and additional experiments done for validation. Since the generation of MDCs requires a lot of know-how, software infrastructure and extensive experimental testing, 3M has developed MDCs which are available for common 3M adhesives and tapes for numerous commercially available FEA software applications. The MDCs can be requested using the button below. While the material models available in commercial FEA software generally cannot cover all physical effects like viscoelasticity, damage and the associated softening, damping behaviour, plasticity, etc. for small as well as finite strains, we offer various MDCs that are suited for different applications. To this end, we would like to know some basic information about your application in order to provide you with the best-suited MDC for your application.
3M MDCs have been successfully applied in a variety of applications such as strength assessment under quasi-static as well as crash and impact loads, wet-out analysis, analysis of mismatch due to thermal expansion and Noise Vibration Harshness (NVH) analysis. If you would like to discuss your application with one of 3Ms FEA experts, we are always happy to help.
3M’s FEA Experts are ready to support you with answers to your questions around modelling and simulation.
Click below to download our Finite Element Analysis Whitepaper. The whitepaper is split into 6 key areas: Introduction, Tie-Breaks, Continuum modelling, Cohesive zone modelling, Model validation and Conclusion.
