Fast and easy to install: cold-shrink technology
Cold shrink tubing and moulded parts for electrical installation
Invented over 40 years ago by 3M, 3M™ Cold Shrink Technology is designed to make cable insulating, termination and abandonment as simple as possible. The secret of 3M Cold Shrink technology lies inside it, in the form of a plastic coil. After the 3M™ Cold Shrink Tube has been placed over the joint or cable end, this inner spiral is pulled out. The insulating tube then contracts to its pre-stretched size and shrinks onto the cable, exerting constant radial pressure for the lifetime of the joint or termination.
-
3M cold shrink tubing are installed easily and reliably without the use of tools (e.g. gas torches or naked flames). The tubes are made from extruded EPDM (Ethylene-Propylene-Diene-Terpolymer) or silicone that are stretched onto a spiral core.
The benefits of cold shrink tubes clear a long -term environmental seal that has high performance even in extreme conditions. The tool-less installation reduces downtime, installation time and training requirements.
-

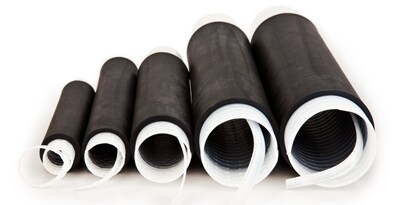

EPDM rubber tubes shrink to fit without heating.
-

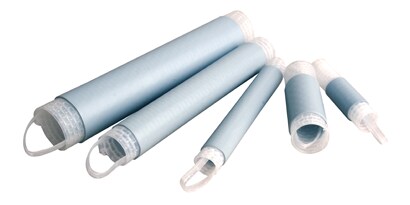

Tubes shrink to fit without heat. Silicone rubber has very good weather and chemical resistance.
-

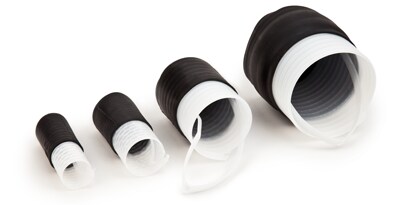

EPDM elastomer caps to protect cables, against dirt, moisture and mechanical deterioration. Tool-less installation for easy of use and speed.
-
Applications
- Electrical insulation up to 1000 volts
- Insulation of low voltage joints
- Suitable for indoor and outdoor use
- Mechanical protection of installation
- Cable jacket repair
- Protecting and sealing non-electric applications
-
Applications
- Easy and safe installation
- High reliability
- High shrink ratio
- Compressive environmental seal
- Tool-less installation
- Reduced contractor training requirement
- Reduced installation time
- High performing in extreme conditions
